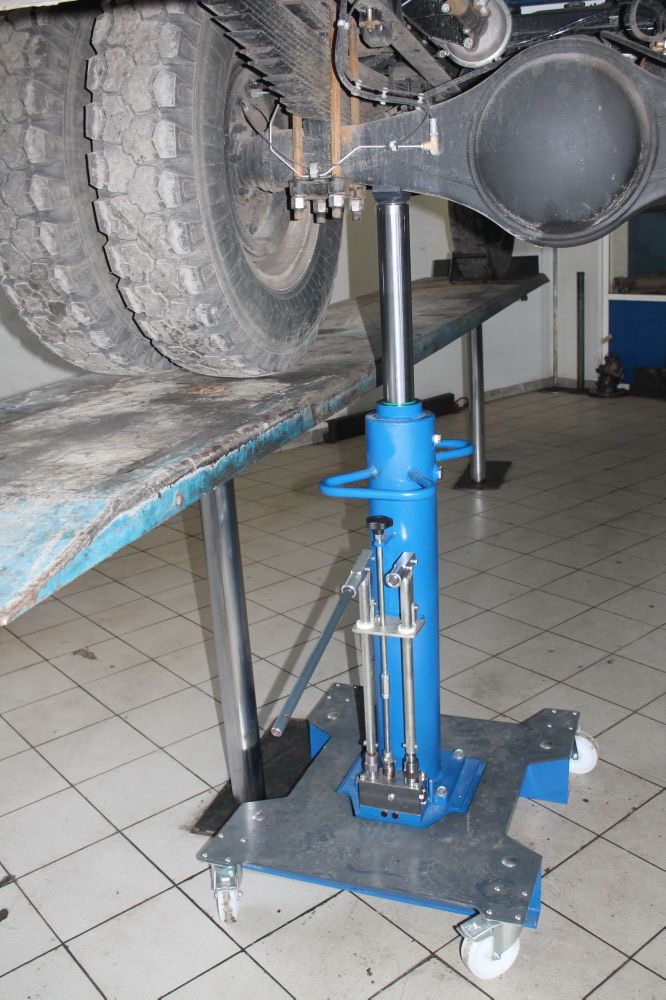

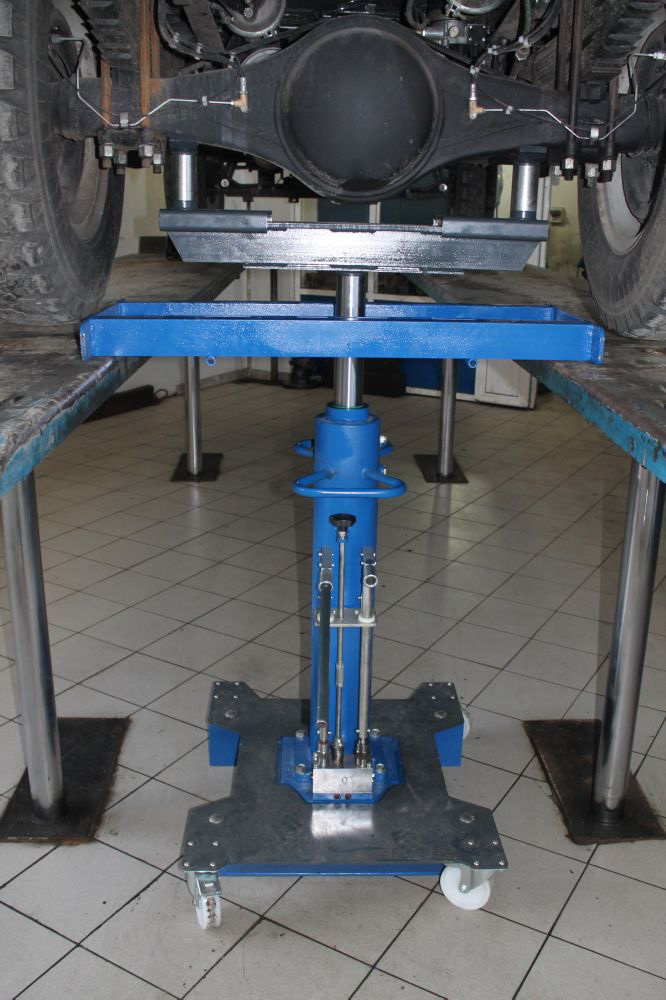

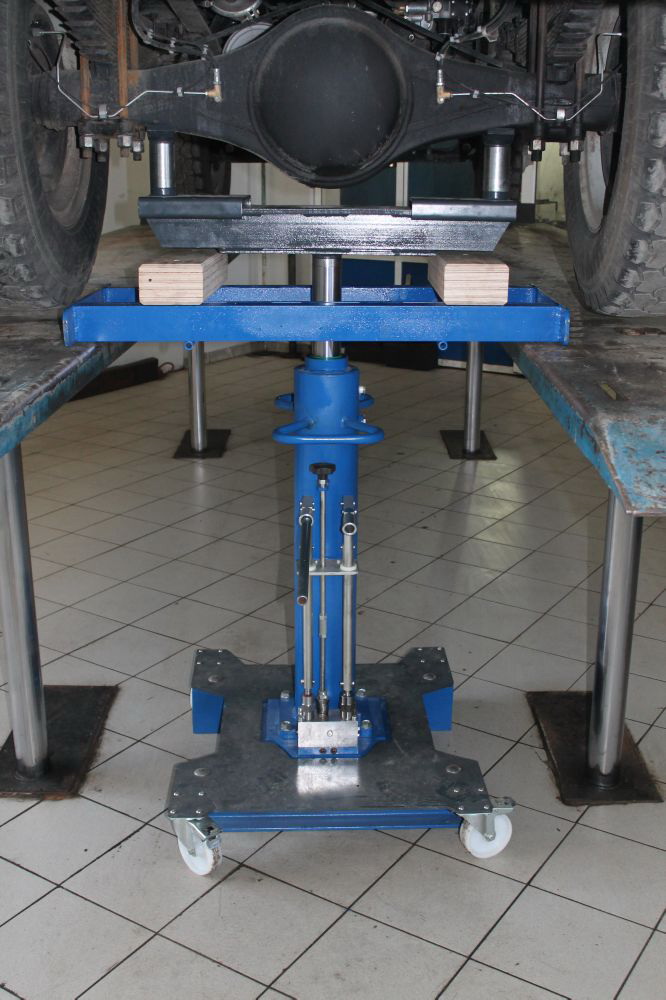

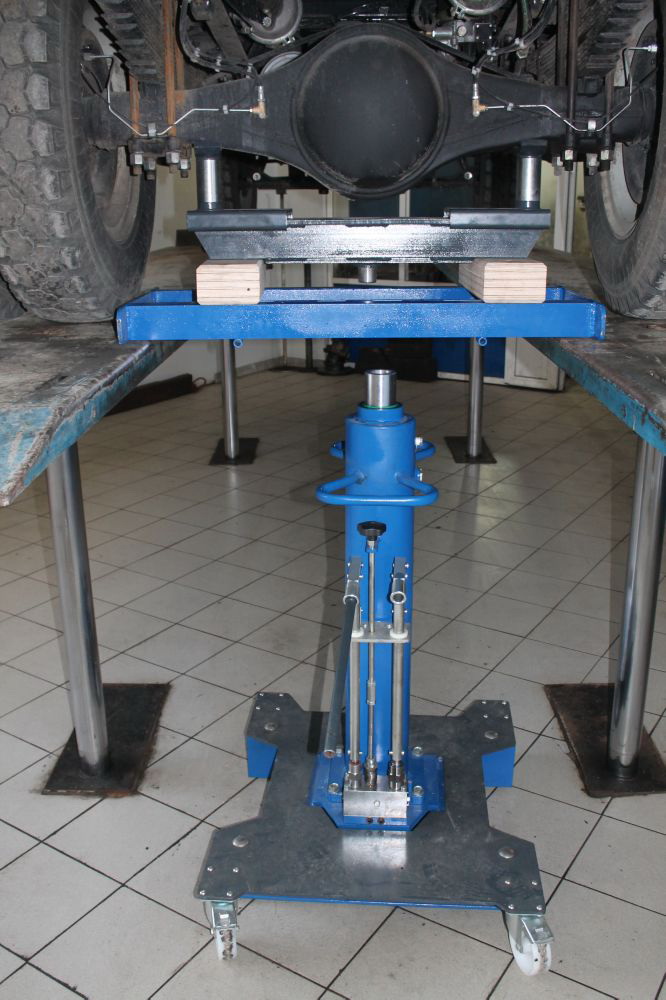

Pit Jack P-114-10-2, P-114-16-2


Is able to lift cars, trucks, buses when performing maintenance, repairs, diagnostics and tool control.

Universal platform in the form of a parallelogram des igned to repair vehicles with different wheelbase and track width.

Hydraulic steering gear

Easy access to the vehicle is provided by the absence of lateral racks

Security is ensured by the use of hidrotambo on each cylinder and duplicated mechanical locking devices on right and left side of the platform.

Options: outdoor and flat floor


Technical data


Model

P-114-10-2

P-114-16-2

Hoisting capacity, kgs

 10 000

16 000

Lifting height

750mm



750 mm

Control

Manual hydraulic drive

Manual hydraulic drive

Mechanical safety device

 A separate support system

A separate support system


Questionnaire





More detailed information on the equipment found at the link https://yadi.sk/d/VdzDIBsSsfpar
