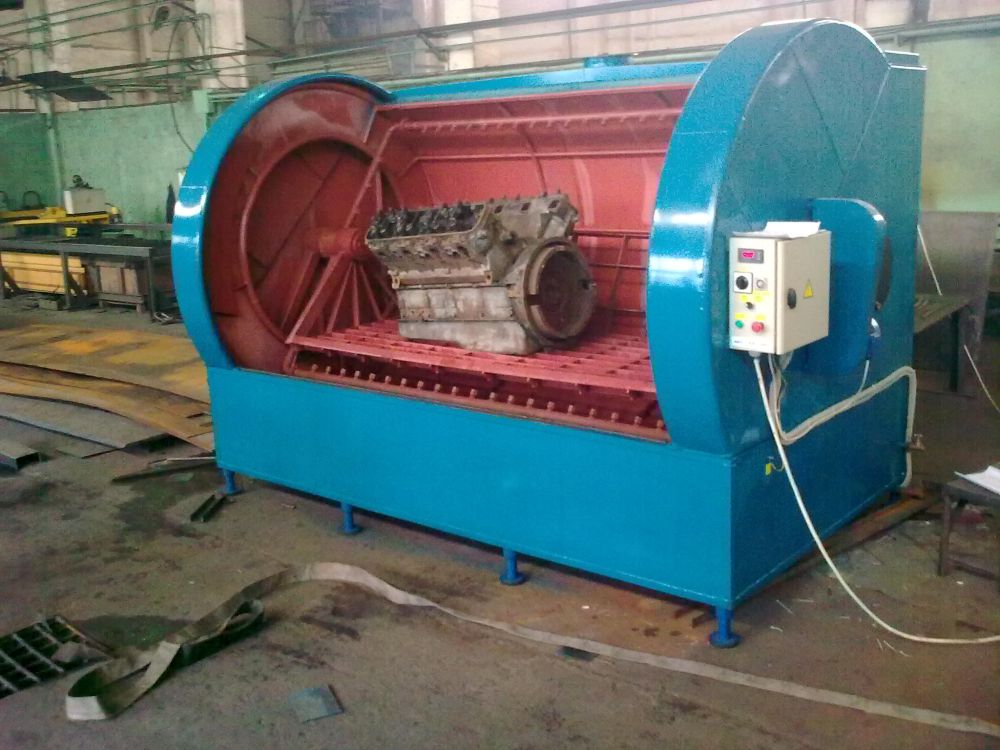

Cabinets parts washer 2162

Is designed for washing aggregates, engines, transmissions and parts for trucks, buses, tractors, construction, agricultural and other machines;

Internal dimensions of the working chamber of the installation allow for the washing of large units and units of heavy equipment without disassembly;

Used to install a closed cycle of ecologically safe detergent, internal cleaning devices thus allow to separate the precipitated particles of impurities in the solid phase;

A jet of hot cleaning solution under pressure ideally wash away oil and resinous deposits with machined parts and assemblies;

The unit has two timer: timer waiting to start heating the washing solution from 0 to 300 hours and a timer cycle time from 0 to 60 minutes;

Is internal dimensions of the working chamber of the installation allow for the washing of large units and units of heavy equipment without disassembly;

Used to install a closed cycle of ecologically safe detergent



Technical data




Type washer

M216E2

Type

Stationary jet with a rotating collector

The weight of the wash units at the same time, Kg, no more than

1000

The cleaning fluid

1000

The cleaning fluid

VUK, MC - 6

The time of heating the liquid, hour, no more than

4

The temperature of the cleaning fluid,

60

Power of electric heaters,

18

Supply voltage,

380

Pump delivery, 3/

50

Power of motor for pump,

15

The number of baskets for details

2

Capacity of one basket for details, kgs

200

Length/width/height, mm

4050/2150/2470

Mass, kgs, no more than

2200






More detailed information on the equipment found at the link  https://yadi.sk/d/kC_bb0cIsfpYc
