Play Tester
Used for play detection in bearings, joins, and other actuated parts of car’ s suspension and steering as well as for their wear rate estimation.
Main characteristics
platforms of free play detector imitate all possible loads conveyed to car’s steering and suspension while it moves;

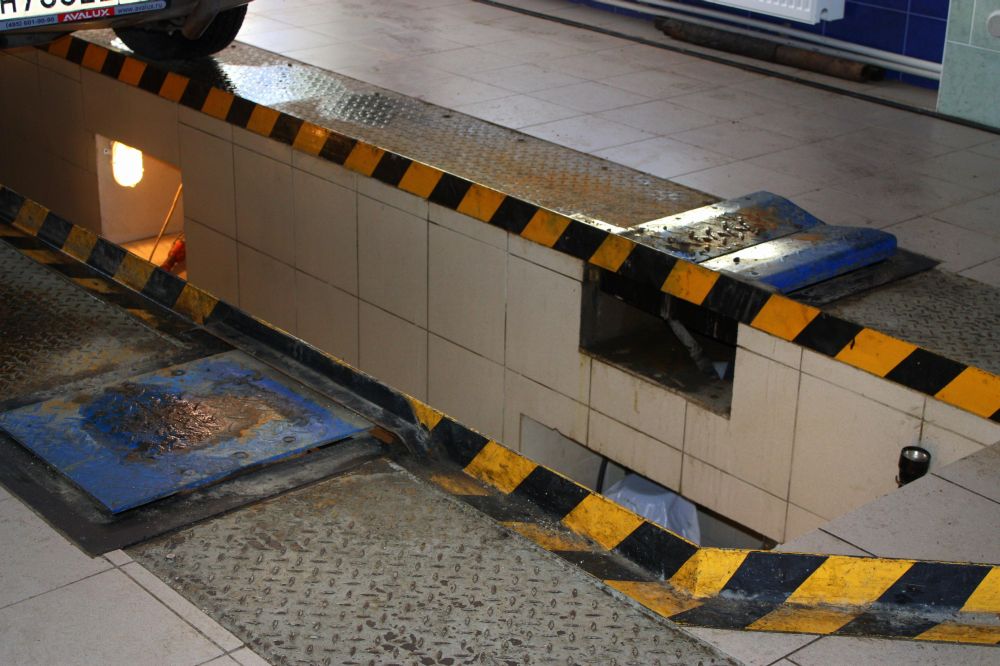

free play detector can be installed on lift as well on inspection pit; станавливаться как на подъемнике, так и на смотровой канаве;
hydraulic drive;
uilt-in halogen lamp.
DG015 diagram pit version, DL003 diagram, pit version
Technical data
|
Model |
DL-003 |
DG-015 |
|
Max. axle weight, kgs |
3000 |
15000 |
|
Platform travel, mm |
40 |
80 |
|
Power consumption, kW |
1,5 |
3 |
|
Supply voltage, V |
380 |
380 |
|
Dimensions of free play detector platform, mm |
440/525/100 |
700/800/250 |
|
Free play detector weight without hydraulic unit, kgs |
150 |
520 |
|
Charged hydraulic unit weight, kgs |
80 |
140 |
Video
More detailed information on the equipment found at the link https://yadi.sk/d/B6QvNZmBsfpXy
