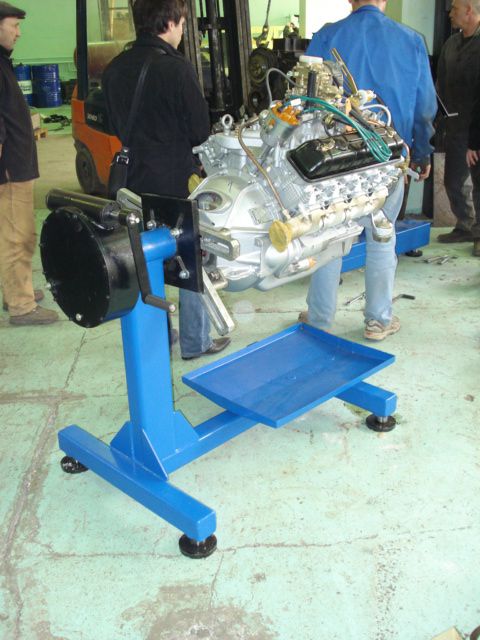

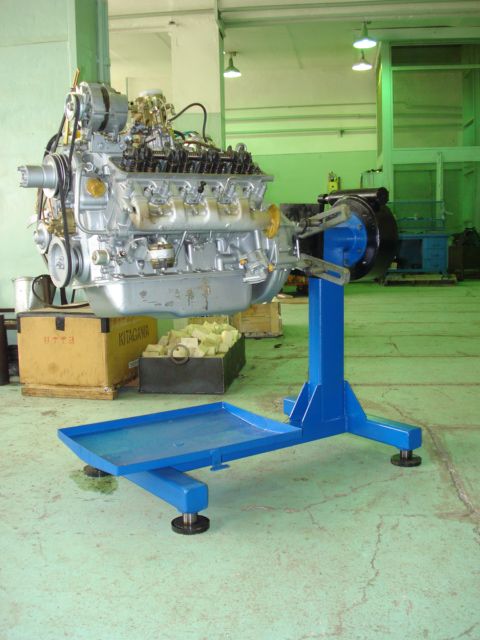

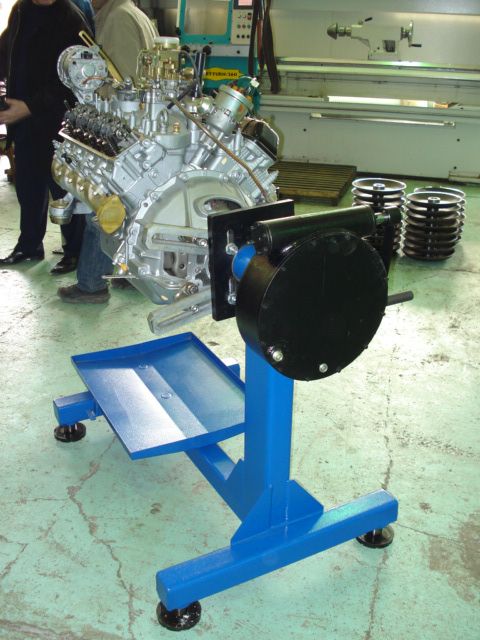

Stand for repair engines R500 E


Used for assembly and disassembly of car engines and other units of foreign and domestic manufacture.

Main characteristics

multi-purpose adapters allow to mount engines, gear boxes, rear axles or any other units weighing up to 800 kilograms with ease;

non-reversible worm reducer allows to turn and clamp an engine or any other unit in position necessary for easy and qualitative repair works;

the stand has a technical liquid collecting pan.


Technical data


Stand model

R-500E

Type

stationary

Hoisting capacity, kgs

800

Turn method

manual by means of worm reducer

Length, mm

1195

Depth, mm

791

Height, mm

1050

Max. weight, kgs

160




More detailed information on the equipment found at the link https://yadi.sk/d/INeTJWjDsfpbF
